You must turn off your RAIDO!

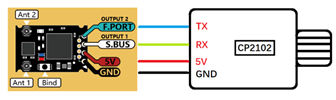

    1.Check the diagram below and connect our product with the Serial Tool: (XR602 as example)

   2.Connect the Serial Tool to PC, a serial port will append(make sure you have installed the driver of the Serial Tool).

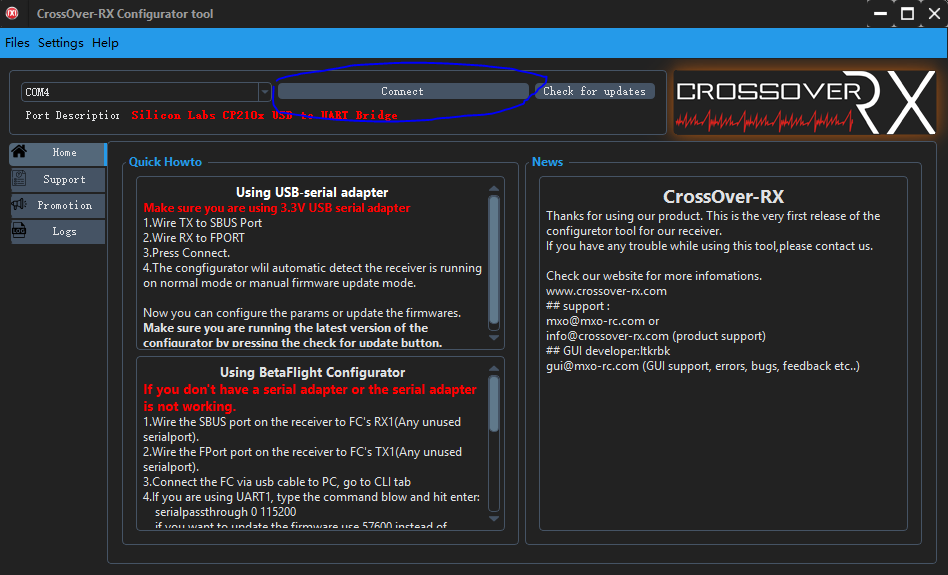

   3.Start the Configurator, the tool will scan the available serial port. Choose the correct port and press connect.

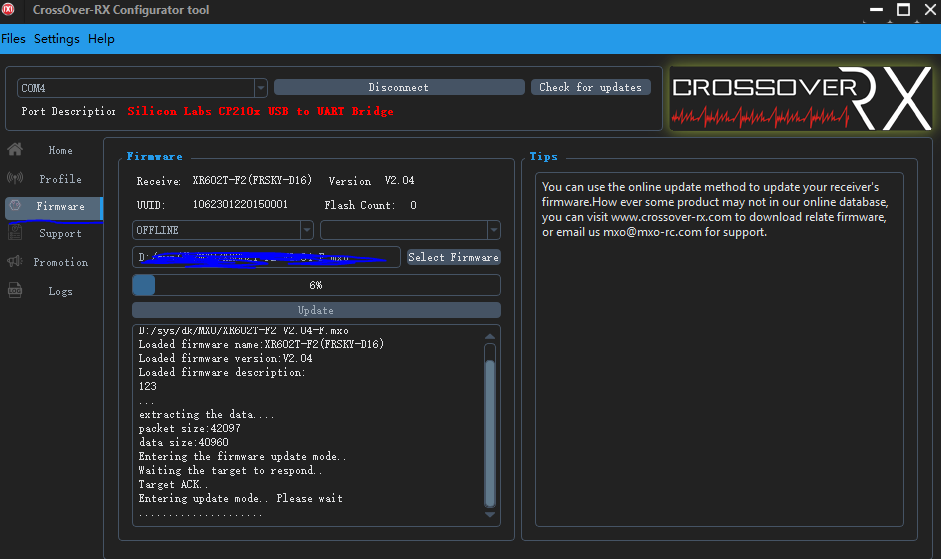

4.If no error occurred, you may switch to the Firmware Tab. You can check the firmware version here. If you have the firmware binary file we provide select the mxo file and click Update button. The software will info you if there any errors occurred. Wait till the software finished the progress, do not disconnect the device while in the updating, you will bricked the device!

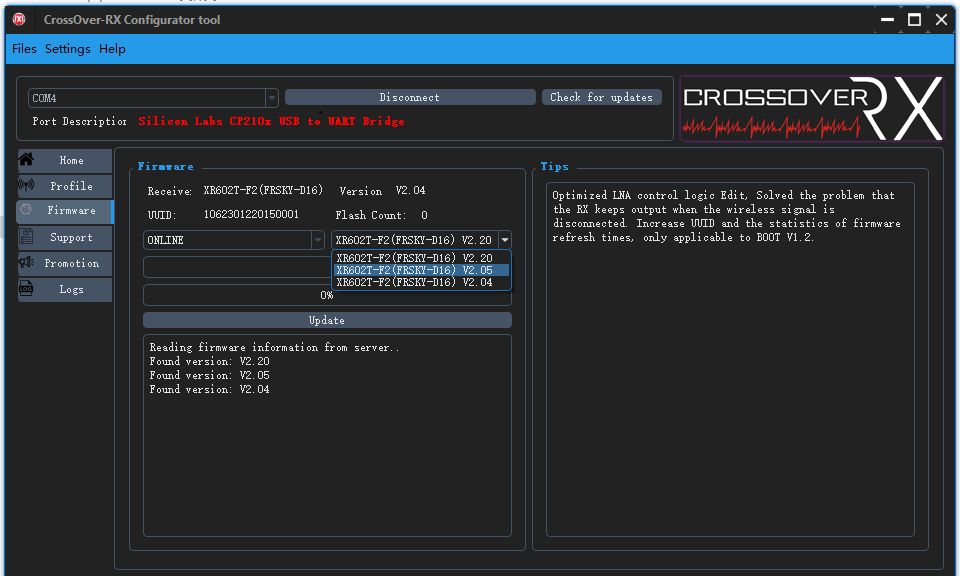

You also can update the firmware from our server. In the Firmware tab, switch the combobox OFFLINE to ONLINE, if we've add the product to our server list, the availabe firmware will append to the next combobox. Choose the firmware you perfer to flash and click the Update button.

If you dont want to tear apart your drone and solder the receiver to the TTL board. Here's the solution:

1.Turn of the radio and disconnect the battery from the drone.

2.Check the diagram below make sure you connect the SBUS and FPORT to the FC.(Do not connect the S.BUS to FC's SBUS, S.BUS connect RX instand UART2 as example)

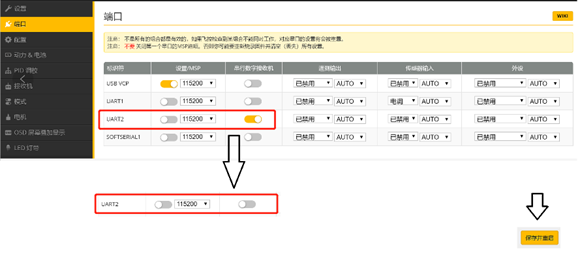

3.Connect the FC to PC while holding the BIND button.Open Betalight Configurator and TURN OFF THE RX setting:

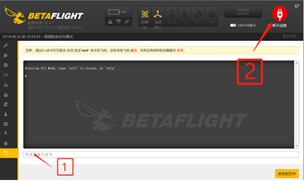

4.Wait for the FC to restart and go to the CLI Tab. Use the code BELOW.

serialpassthrough 1 57600

C

If you are using UART 3 change to

serialpassthrough 2 57600

HTML

Disconnect the Betaflight configurator

If everythin set up corrctly, use Crossover-RX Configurator tool to connect the available serial port and you may update the firmware.

If you want the configure the product's settings check our kb page for more information.

Thank you.
