CROSSOVER-RX Ma-RX42-A2/A2+(FLYSKY-AFHDS-2A) Built-in ESC/5CH MicroRX/TELEM

Ma-RX42-A2/A2+(FLYSKY-AFHDS-2A) Built-in ESC/5CH MicroRX/TELEM
    Ma-RX42-A2 series of receivers are upgraded from the old version(2016), smaller and more stable with additional TELEM function.  It still provides 4 independent output ports and 1 integrated 5A/1S brush ESC. Besides, the advance version of MA-RX42-A2 series receivers supports TELEM function, in order to tell the difference from the normal versions, one + is added to A2 of MA-RX42.

Features

1)Modulation:Compatible FLYSKY AFHDS-2A

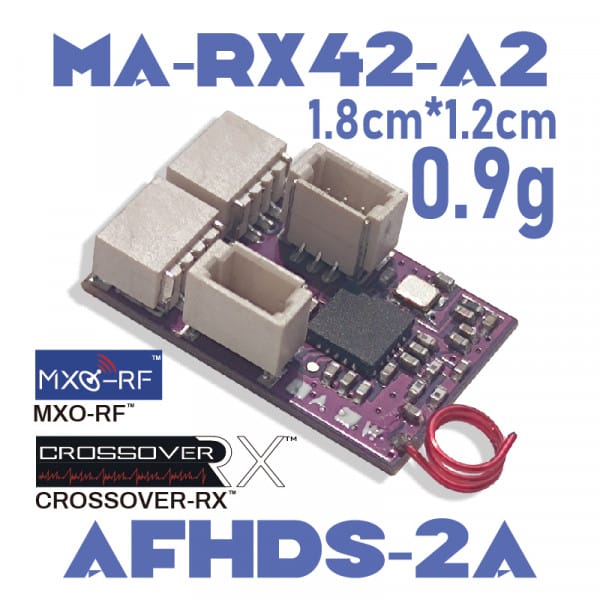

2)Small size:   18.5*12.0*6.5mm(not including antenna)
3)Super light: 0.9g(including antenna)
4)Working voltage:3.0~5.0V
5)With built-in 5A/1S brush ESC (Lock starting function)
6)Support connecting outside brush ESC or brushless ESC
7)Binding automatically
Support TELEM function(only available on advanced version)

Note: not support PPM output anymore!

Basic version

1)Type:Ma-RX42-A2

2)Protocol:AFHDA-2A

3)TELEM function:No

Advanced version

1)Type:Ma-RX42-A2+

2)Protocol:AFHDA-2A

3)TELEM function:Yes

Connection Diagram

Auto binding

    As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.

Start-Lock Function

    Start-Lock Function is the onboard brush ESC function of preventing brush motor from starting by mistake.  It can protect the brush motor from starting even throttle stick not at the lowest position when the receiver is powered.

    As soon as the receiver gets the signal and the throttle stick on your transmitter is at the lowest position for 2 seconds the first time, Start-Lock will be released then, the brush motor will run when the throttle stick is pushed.

TELEM function

    TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver)

    NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright!

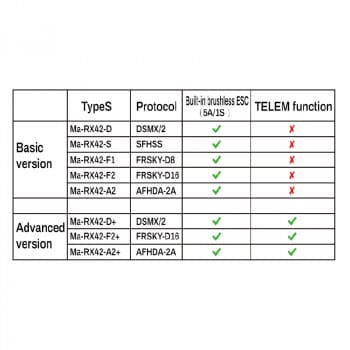

Ma-RX42-X series receivers have the following 8 versions
