CROSSOVER-RX AR3201G-S V2.0 (FUTABA-SFHSS) Built-in 2 brushed ESCs/6CH MicroRX/SR3X/GYRO

No tax
  Security policy

Pay with secure method

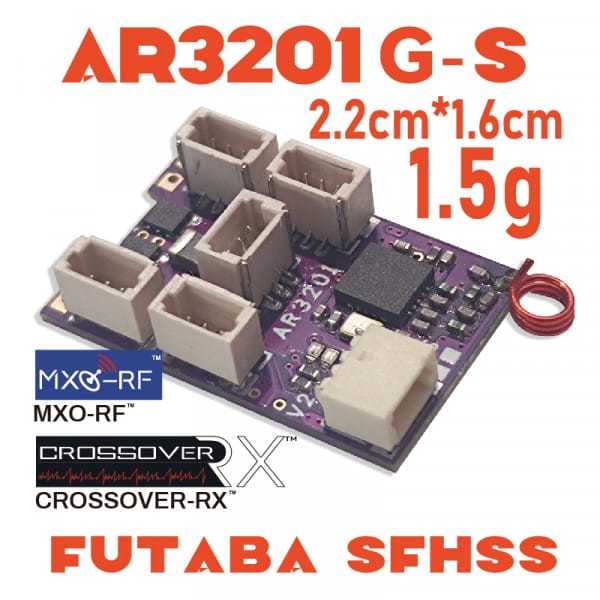

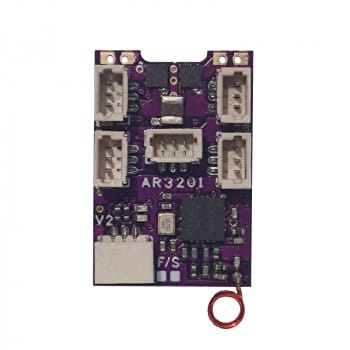

    AR3201G-S is a kind of highly integrated receiver(built-in two brush 5A ESCs, one receiver, SR3X  3-axis(option), DCDC-5A/1A boosting power). It is very helpful for DIY or rebuilding model airplanes weight between 25-100g.


1)Modulation:Compatible FUTABA-SFHSS
2)Small size:  22.0*16.0*6.2mm(not including antenna)
3)Super light: 1.5g(including antenna)
4)Working voltage:3.0~5.0V
5)DCDC-5V/1A boosting power
6)With built-in 2 brushed ESCs (5A/1S , Lock starting function)
7)Integrated with SR3X 3-AXIS function (for option, can turn off, sensitive adjustable)
8)Binding automatically
9)Support online updating
10)Support GUI setting function
11)Supports differential speed mode

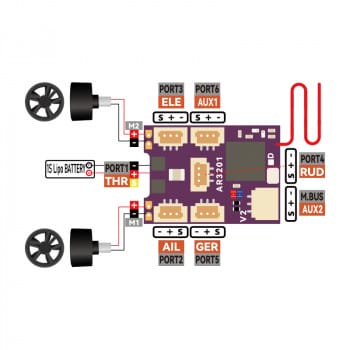

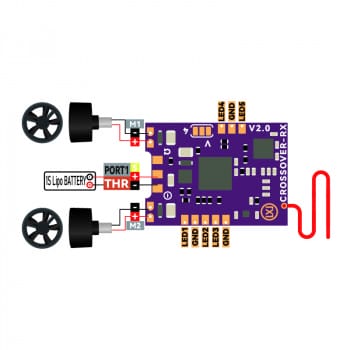

Connection Diagram

Start-Lock Function

    Start-Lock Function is the onboard brush ESC function of preventing brush motor from starting by mistake.  It can protect the brush motor from starting even throttle stick not at the lowest position when the receiver is powered.
    As soon as the receiver gets the signal and the throttle stick on your transmitter is at the lowest position for 2 seconds the first time, Start-Lock will be released then, the brush motor will run when the throttle stick is pushed.

Auto binding

    As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.

SR3X 3-AXIS function

    SR3X is a flight assistance system developed specially on fixed wing model airplanes. It can not only help the beginner control model airplane, but also help the senior pilots get better and stable flight attitude.
    SR3X 3-axis gets three working modes: shut off; low sensitive working mode, high sensitive working mode. Customer can set up CH5 on the 3-gear switch of the transmitter through which decides its working mode. The blue LED on AR5202 is for indicating the working mode:

1)  blue LED light is shut off indicates SR3X 3-axis is turned off.

2) Solid bright blue LED indicates low sensitive mode.

3) blinking LED indicates high sensitive mode.

M.BUS Interface

M.BUS interface is a multi-function interface:
1) FW upgrade/Function setting interface;
2) Output channel signal;
3) Output SBUS signal;
4) Connect other sensors (under development);
Note: It is forbidden to connect the battery to the receiver when the PC is connected to the M.BUS interface.

How to connect RX to GUI software(Download link:

    The user needs a USB programmer (USB MX-PG02, when used on AR3201G-X V2.0, the switch on the programmer is set to the I position) before using the GUI software to configure the receiver function or upgrade the firmware. Connect one end of the USB programmer to the M.BUS port of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click "Connect", and then the various configurable function modules on the receiver will be loaded and displayed. The current setting information of the machine.

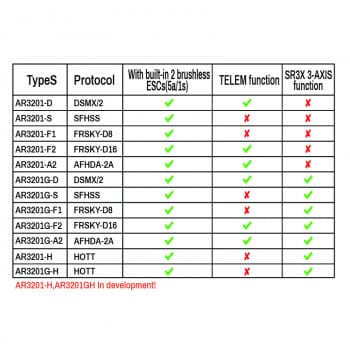

AR3201 series receivers have the following 12 versions
