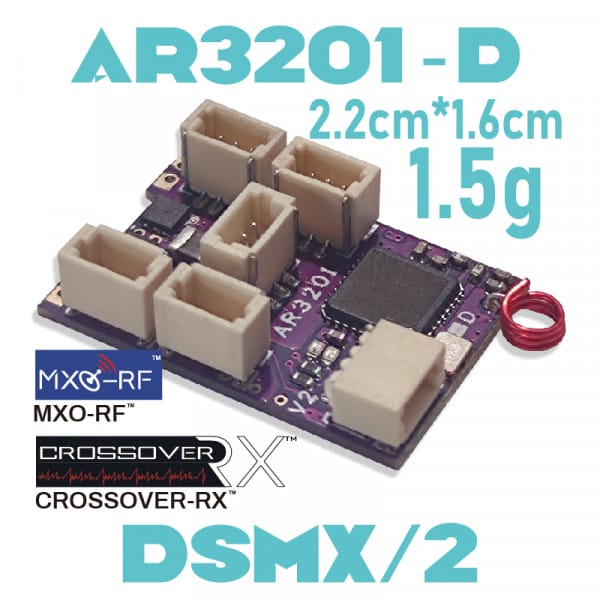

CROSSOVER-RX AR3201-D(DSMX/2) Built-in2 brushless ESCs/6CH MicroRX/TELEM


    AR3201-D is a kind of highly integrated receiver(built-in two brush 5A ESCs, one receiver, SR3X  3-axis(option), DCDC-5A/1A boosting power). It is very helpful for DIY or rebuilding model airplanes weight between 25-100g.


1)Modulation:Compatible DSMX/2
2)Small size:  22.0*16.0*6.2mm(not including antenna)
3)Super light: 1.5g(including antenna)
4)Working voltage:3.0~5.0V
5)DCDC-5V/1A boosting power
6)With built-in 2 brushless ESCs (5A/1S , Lock starting function)
7)Binding automatically
8)Support TELEM function( voltage message returns to transmitter)
9)Support online updating
10)Support GUI setting function
11)Supports differential speed mode

Connection Diagram

Start-Lock Function

    Start-Lock Function is the onboard brush ESC function of preventing brush motor from starting by mistake.  It can protect the brush motor from starting even throttle stick not at the lowest position when the receiver is powered.
    As soon as the receiver gets the signal and the throttle stick on your transmitter is at the lowest position for 2 seconds the first time, Start-Lock will be released then, the brush motor will run when the throttle stick is pushed.

Auto binding

    As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.

TELEM function

    TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver)
    NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright!

M.BUS Interface

M.BUS interface is a multi-function interface:
1) FW upgrade/Function setting interface;
2) Output channel signal;
3) Output SBUS signal;
4) Connect other sensors (under development);
Note: It is forbidden to connect the battery to the receiver when the PC is connected to the M.BUS interface.

How to connect RX to GUI software(Download link:

    The user needs a USB programmer (USB MX-PG02, when used on AR3201-X V2.0, the switch on the programmer is set to the I position) before using the GUI software to configure the receiver function or upgrade the firmware. Connect one end of the USB programmer to the M.BUS port of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click "Connect", and then the various configurable function modules on the receiver will be loaded and displayed. The current setting information of the machine.


AR3201 series receivers have the following 12 versions


    All items will be checked carefully before shipment.We will pack and ship the parcel with 5 day. ( There will be delay when holidays. )

    Tracking information is available within 1-4 days after shipment. We will ship via SF Express or FedEx & UPS. Usually, the shipping time is 7-45 business days. If you can't receive your item, please feel free to contact me for help.

Service Time

    Beijing: From 9:00 am to 18:00 pm
    London: From 2:00 am to 11:00 pm
    Moscow: From 4:00 pm to 13:00 pm
    New York: From 21:00 pm to 6:00 am


    If you are not satisfied with the items, please feel free to contact me for solution instead of leaving neutral or negative feedback, We will try our best to solve the problem.
    Please leave positive feedback and 5 stars if you are satisfied with our items and services. :) Thank you


1)The AR3201 series RX are Not a copy or fake products of other companies;
2)MXO-RF and CROSSOVER-RX brand guaranteed its high quality and continuous technical service.
