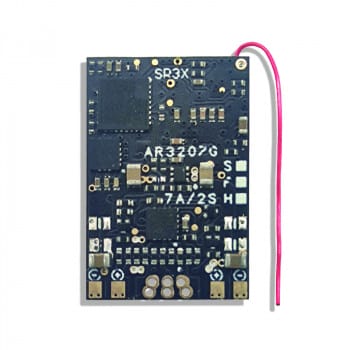

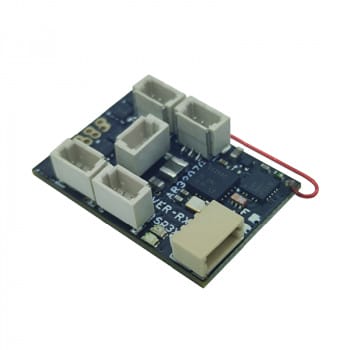

CROSSOVER-RX AR3207G-F1(FRSKY-D8) Built-in brushless ESC/GYRO/SR3X/7CH MicroRX
AR3207G-F1 series receivers were developed upon Ma-RX62HE-X series receivers, with a built-in 7A/2S(5A/3S) brushless ESC and 6 independent servo ports on board, in this case, AR3207G-F1 receiver can provide more power and more channels to work on larger size or more complicated model planes.
AR3207G-F1 receivers supports SR3X 3-AXIS function(GYRO function).

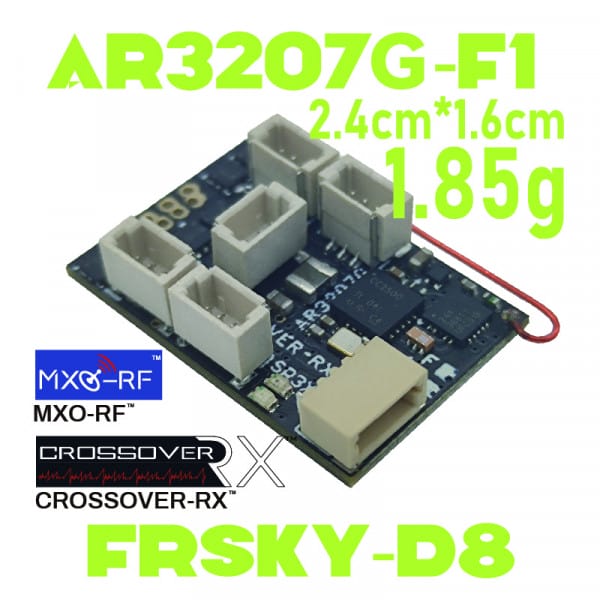

2)super small size：24.0*16.0( not including antenna
3)super light：1.85g(not including power cables and motor connectors)
5)Comes with a built-in 7A/2S or 5A/3S brushless ESC
6)Built-in DCDC buck circuit(2.2A/3.9V)
7)Supports double aileron mode(reversed)
9)Supports SR3X 3-AXIS function(GYRO function)
10)1.0mm 3P servo connectors
As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this:
The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.

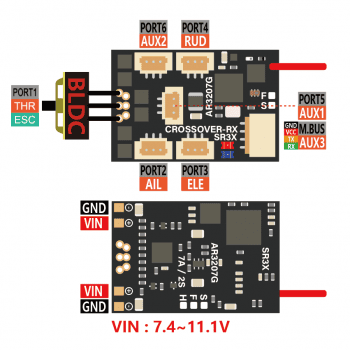

Double-aileron mode is developed for those model airplanes using double ailerons. This function can simplify servo wiring connection and transmitter set up. Default is double-aileron mode, you can turn off double-aileron mode by short connect P ports on the above picture, then AIL2 will be set as AUX2 output.
SR3X 3-AXIS function
SR3X is a flight assistance system developed specially on fixed wing model airplanes. It can not only help the beginner control model airplane, but also help the senior pilots get better and stable flight attitude.
SR3X 3-axis gets three working modes: shut off; low sensitive working mode, high sensitive working mode. Customer can set up CH5 on the 3-gear switch of the transmitter through which decides its working mode.
The blue LED on AR3207G-F1 is for indicating the working mode:
1)blue LED light is shut off indicates SR3X 3-axis is turned off.
2)Solid bright blue LED indicates low sensitive mode.
3)blinking LED indicates high sensitive mode.
M.BUS interface is a multi-function interface:
1) FW upgrade/Function setting interface;
2) Output channel signal;
3) Output SBUS signal;
4) Connect other sensors (under development);
Note: It is forbidden to connect the battery to the receiver when the PC is connected to the M.BUS interface.
How to connect RX to GUI software(Download link： update.crossover-rx.com/mxo.zip)
The user needs a USB programmer (USB MX-PG02, when used on AR3207G-X, the switch on the programmer is set to the II position) before using the GUI software to configure the receiver function or upgrade the firmware. Connect one end of the USB programmer to the M.BUS port of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click "Connect", and then the various configurable function modules on the receiver will be loaded and displayed. The current setting information of the machine.
AR3207G-X series receivers have the following 5 versions
All items will be checked carefully before shipment.We will pack and ship the parcel with 5 day. ( There will be delay when holidays. )
Tracking information is available within 1-4 days after shipment. We will ship via SF Express or FedEx & UPS. Usually, the shipping time is 7-45 business days. If you can't receive your item, please feel free to contact me for help.
Beijing: From 9:00 am to 18:00 pm
London: From 2:00 am to 11:00 pm
Moscow: From 4:00 pm to 13:00 pm
New York: From 21:00 pm to 6:00 am
If you are not satisfied with the items, please feel free to contact me for solution instead of leaving neutral or negative feedback, We will try our best to solve the problem.
Please leave positive feedback and 5 stars if you are satisfied with our items and services. :) Thank you
1）The AR3207G series RX are Not a copy or fake products of other companies；
2）MXO-RF and CROSSOVER-RX brand guaranteed its high quality and continuous technical service.
