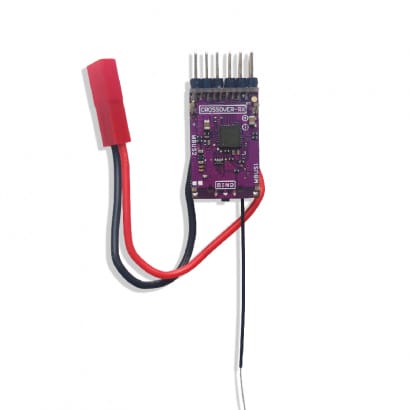

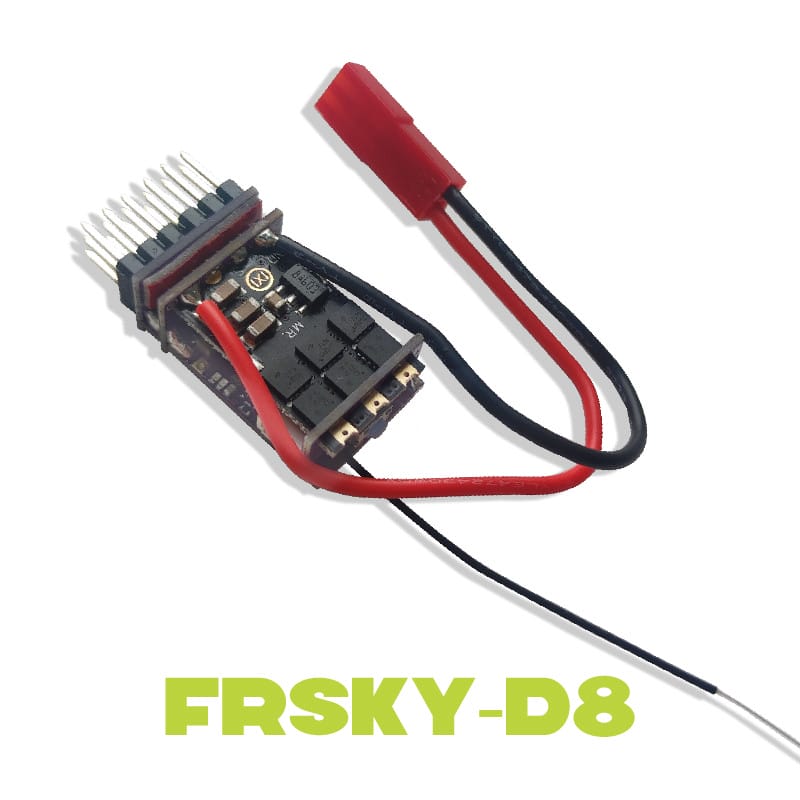

CROSSOVER RX FR7012-F1 (FRSKY-D8) Receiver 7CH Receiver with 2-3S ESC/Brushless ESC/500-700M/F3P

Built-in brushless ESC:

  Traditional brushless ESCs and receivers are designed as separate types, and they are connected by wires, which will inevitably increase the overall weight of the F3P device and increase the troublesome installation of electronic devices. In response to this situation, we have developed an F3P receiver with integrated brushless ESC. In order to adapt to most F3P aircraft, the built-in brushless ESC is designed with 20A/2~3S. Using this series of receivers can greatly reduce the F3P flight weight.

ESC travel calibration:

  The stroke calibration of this ESC is the same as that of traditional brushless ESCs. Before ESC travel calibration, first turn on the remote control and push the throttle lever to the highest position, then power on the receiver (the brushless motor will give a power-on prompt at this time) -> the motor will sound when the brushless ESC detects the highest throttle Prompt -> Pull the throttle lever to the lowest position after the motor sounds prompts -> The motor sounds prompt when the brushless ESC detects the lowest throttle -> After the motor sounds prompts, the ESC saves the calibration results, and then the user can disconnect the power or start the motor.

Frequency pairing operation:

  After powering on the receiver, press the pairing switch. After about 2S, the red LED on the receiver will change from slow flashing to fast flashing. Release the pairing switch. At this time, the receiver will enter the frequency pairing mode. operation to complete the pairing.

Note: During the frequency pairing of the D version, the distance between the remote controller and the receiver is about 30CM, and the antenna of the remote controller and the antenna of the receiver should be parallel, so that the probability of successful frequency pairing will be greatly improved.

TELEM function

  TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver)

NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright!

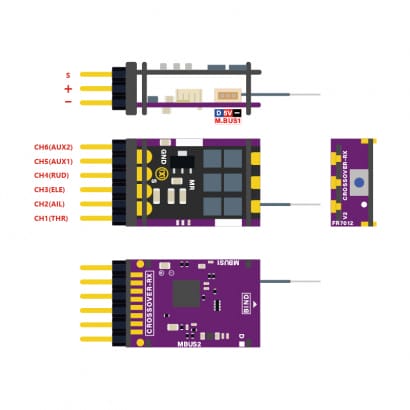

M.BUS1 Equipment port

  The M.BUS1 interface is a multi-function interface: ​

1) Firmware upgrade/function setting interface; ​
2) Output SBUS signal; ​
3) External other sensors (under development);

Note: It is forbidden to connect the battery to the receiver when the PC is connected to the M.BUS1 interface.

M.BUS2 Equipment port

  The M.BUS2 interface is a multi-function interface: ​

1) output SBUS signal; ​
2) connect other sensors (under development);

How to connect RX to GUI software(download link update.crossover-rx.com/mxo.zip)
