MXL-RX62E-D/D-G (DSMX/DSM2) Receivers/linear servos/Built-in brushless ESC/TELEM/SR3X/GYRO/5CH/mini RC model aircrafts

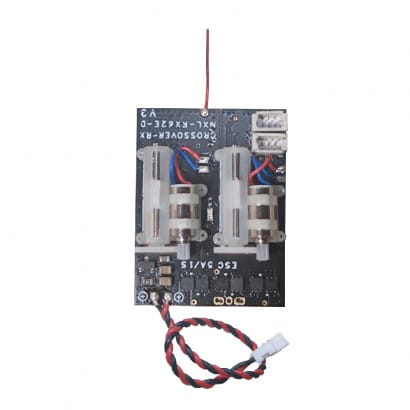

MXL-RX62E-D V3.1 series receivers are developed on the basis of MXL-RX62H-D V3.0, on which are integrated with 5A/1S brushless ESC, the length of the board is only 8.2mm longer than that of MXL-RX62H board, in this case, MXL-RX62E-D receiver also can be installed on micro model airplanes very easily and bring customer brushless flight fun. Besides, MXL-RX62E-D supports TELEM function.

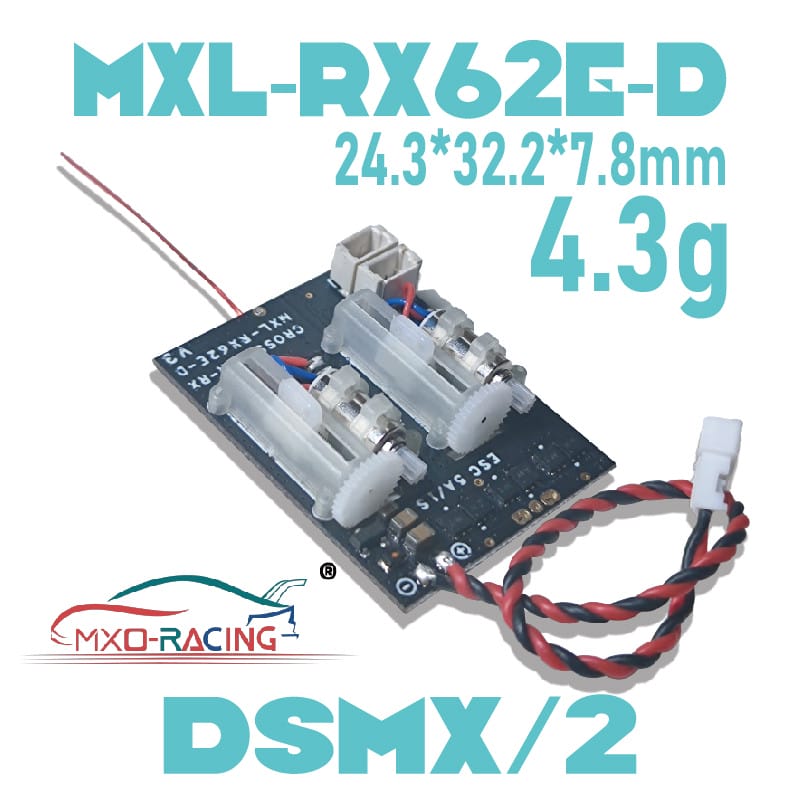

1.Super small: 24.3*32.2*7.8mm(not including antenna)
2.Super light: 4.28g including power cable；
3.Working voltage: 3.0~5.0V;
4.DCDC-5V/1A boosting power;
5.Supports dual ailerons servo mode (reversed phase)；
6.With Built-in 5A/1S brushless ESC；
7.Integrated with SR3X 3-axis( three working mode: off, low sensitivity, high sensitivity)(only MXL-RX62E-D-G)
9.supports TELEM function;
10.Supports online firmware updating;
11.Supports GUI set up;
3)Built-in brushless ESC:YES
3)Built-in brushless ESC:YES
5A/1S brushless ESC
MXL-RX62E-X-G V3.1 comes with a built-in BLS 5A/1S Brushless ESC.
Auto binding operation
It is a bit difficult to press the binding button when the receiver is installed inside the fuselage, in this case, we developed auto binding function. After the receiver is powered for 15 seconds and no signal still, the receiver will enter auto binding mode (the slow flashing LED light turns to fast blinking), customer can complete binding operation according to their own transmitter’s instruction.
TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen (for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver)
NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright
SR3X 3-AXIS function
SR3X is a flight assistance system developed specially on fixed wing model airplanes. It can not only help the beginner control model airplane, but also help the senior pilots get better and stable flight attitude.
SR3X 3-axis gets three working modes: shut off; low sensitive working mode, high sensitive working mode. Customer can set up CH5 on the 3-gear switch of the transmitter through which decides its working mode. The blue LED on MXL-62H-X-G is for indicating the working mode:
1)blue LED light is shut off indicates SR3X 3-axis is turned off.
2)Solid bright blue LED indicates low sensitive mode.
3)blinking LED indicates high sensitive mode.
MXL-RX62H series and MXL-RX62E series receivers have the following 21 versions
All items will be checked carefully before shipment.We will pack and ship the parcel with 5 day. ( There will be delay when holidays. ) Tracking information is available within 1-4 days after shipment. We will ship the parcel via China Post or Aliexpress. Usually, shipping time is 15-60 business days. If you can't receive your item, please feel free to contact me for help.
Beijing: From 9:00 am to 18:00 pm
London: From 2:00 am to 11:00 pm
Moscow: From 4:00 pm to 13:00 pm
New York: From 21:00 pm to 6:00 am
If you are not satisfied with the items, please feel free to contact me for solution instead of leaving neutral or negative feedback, We will try our best to solve the problem.
Please leave positive feedback and 5 stars if you are satisfied with our items and services. :) Thank you
1）The MXL-RX62E series RX are Not a copy or fake products of other companies；
2）MXO-RF and CROSSOVER-RX brand guaranteed its high quality and continuous technical service.
