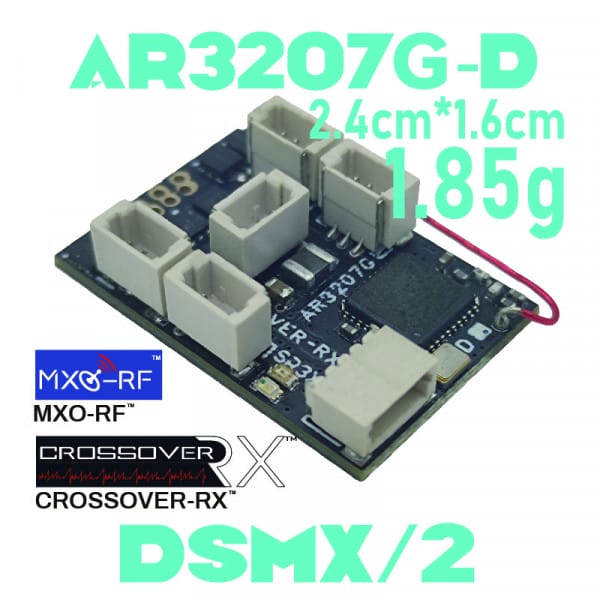

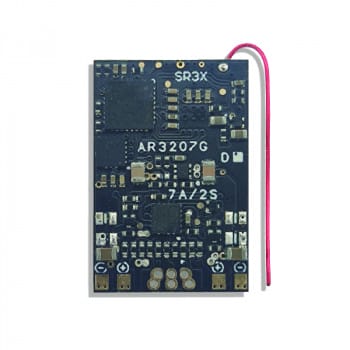

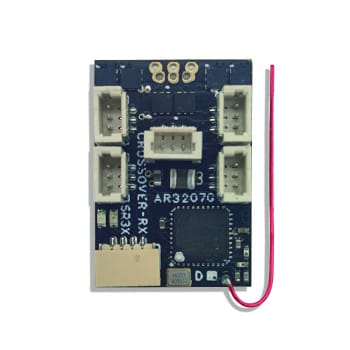

CROSSOVER-RX AR3207G-D(DSMX/2) Built-in brushless ESC/GYRO/SR3X/7CH MicroRX/TELEM
AR3207G-D series receivers were developed upon Ma-RX62HE-X series receivers, with a built-in 7A/2S(5A/3S) brushless ESC and 6 independent servo ports on board, in this case, AR3207G-D receiver can provide more power and more channels to work on larger size or more complicated model planes.
AR3207G-D receivers supports TELEM function and SR3X 3-AXIS function(GYRO function).
2)super small size：24.0*16.0( not including antenna
3)super light：1.85g(not including power cables and motor connectors)
5)Comes with a built-in 7A/2S or 5A/3S brushless ESC
6)Built-in DCDC buck circuit(2.2A/3.9V)
7)Supports double aileron mode(reversed)
9)Supports TELEM function
10)Supports SR3X 3-AXIS function(GYRO function)
11)1.0mm 3P servo connectors
How to start the brushed onboard speed controller.
The brushed speed controller is locked when the receiver is power connected, it would be started only when the throttle stick is at lowest position.
When the throttle stick is checked at the lowest position by the receiver at first time, the red LED will flash one time indicating the brushed ESC is unlocked and can work. If the brushed ESC still can’t be unlocked or started even the throttle stick is at the lowest position exactly, please check on your transmitter and see if THR channel is reversed or the throttle range is not enough, in this case, please change THR set up and try again.
Start-lock function for the built-in brush ESC
The start-lock function is for protecting the brush motor from being started by accident. According to this function, when the receiver is powered, the brush motor won’t been run according to the position change of the throttle stick. When the throttle stick keeps on the lowest position for 2 seconds or so(the LED light turns to dark for 2 seconds or so and then to bright), the start-lock will be unlocked and the motor will run as soon as the throttle stick is pushed upward.
Binding operation for AR3207G-D
After powered and 10 seconds of no signal received, receiver will enter binding mode automatically (slow flashing LED light will turn to fast blinking), customer can do bind operation according to your own transmitter. The fast blinking LED will turn to slow flashing when the binding is successful, and then turn to solid bright when the signal is received.
As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this:
The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.
Double-aileron mode is developed for those model airplanes using double ailerons. This function can simplify servo wiring connection and transmitter set up. Default is double-aileron mode, you can turn off double-aileron mode by short connect P ports on the above picture, then AIL2 will be set as AUX2 output.
TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver)
NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright!
SR3X 3-AXIS function
SR3X is a flight assistance system developed specially on fixed wing model airplanes. It can not only help the beginner control model airplane, but also help the senior pilots get better and stable flight attitude.
SR3X 3-axis gets three working modes: shut off; low sensitive working mode, high sensitive working mode. Customer can set up CH5 on the 3-gear switch of the transmitter through which decides its working mode.
The blue LED on AR3207G-D is for indicating the working mode:
1)blue LED light is shut off indicates SR3X 3-axis is turned off.
2)Solid bright blue LED indicates low sensitive mode.
3)blinking LED indicates high sensitive mode.
M.BUS interface is a multi-function interface:
1) FW upgrade/Function setting interface;
2) Output channel signal;
3) Output SBUS signal;
4) Connect other sensors (under development);
Note: It is forbidden to connect the battery to the receiver when the PC is connected to the M.BUS interface.
How to connect RX to GUI software(Download link： update.crossover-rx.com/mxo.zip)
The user needs a USB programmer (USB MX-PG02, when used on AR3207G-X, the switch on the programmer is set to the II position) before using the GUI software to configure the receiver function or upgrade the firmware. Connect one end of the USB programmer to the M.BUS port of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click "Connect", and then the various configurable function modules on the receiver will be loaded and displayed. The current setting information of the machine.
AR3207G-X series receivers have the following 5 versions
All items will be checked carefully before shipment.We will pack and ship the parcel with 5 day. ( There will be delay when holidays. )
Tracking information is available within 1-4 days after shipment. We will ship via SF Express or FedEx & UPS. Usually, the shipping time is 7-45 business days. If you can't receive your item, please feel free to contact me for help.
Beijing: From 9:00 am to 18:00 pm
London: From 2:00 am to 11:00 pm
Moscow: From 4:00 pm to 13:00 pm
New York: From 21:00 pm to 6:00 am
If you are not satisfied with the items, please feel free to contact me for solution instead of leaving neutral or negative feedback, We will try our best to solve the problem.
Please leave positive feedback and 5 stars if you are satisfied with our items and services. :) Thank you
1）The AR3207G series RX are Not a copy or fake products of other companies；
2）MXO-RF and CROSSOVER-RX brand guaranteed its high quality and continuous technical service.
